地震研究

随着“中国大陆构造环境监测网络”项目中绝对重力仪数量和类型的不断增加,绝对重力观测数据解算基准存在着由于不同仪器系统偏差造成的不统一,影响了时变重力数据解算的精度和准确性。为研究绝对重力仪间系统偏差,通过分析2024年度10台绝对重力仪的同址集中比测数据,采用加权最小二乘平差方法对数据进行统一解算,获得了3个测点重力标准参考值和各仪器的系统偏差,最后综合对比分析陆态网络历期比测结果。结果表明:①10台绝对重力仪的系统偏差为-3.42～4.50 μGal,观测精度为 0.69～3.38 μGal,仪器间系统偏差在数个μGal量级; ②参加2023、2024两期比测的6台仪器系统偏差的变化值与重力基准变化值的偏差为-1.31～3.69 μGal,表明陆态网络观测使用绝对重力仪性能稳定,适合用于探测地震相关的微小重力变化信号; ③陆态网络9期比测的绝对重力仪系统偏差全部优于5 μGal,FG5、FG5X型绝对重力仪的系统偏差标准差维持在2 μGal左右,而A10型绝对重力仪的系统偏差标准差最大达4.56 μGal,因此各仪器的系统偏差在高精度重力测量中应予以考虑。

As the number and the type of absolute gravimeters involved in the Crustal Movement Observation Network of China(CMONOC)continue to increase,there is inconsistency in the calculation benchmark of absolute gravity observation data due to systematic deviations of different gravimeters,which affects the precision of time-varying gravity data calculation.To study the systematic deviation between absolute gravimeters,this article analyzes the concentrated comparison data of 10 absolute gravimeters in the same location in 2024,and uses the weighted least squares adjustment method to uniformly solve the data.Three gravity standard reference values and systematic deviations of each instrument are obtained,and finally,the historical results of the terrestrial network are comprehensively compared and analyzed.Research has shown that:① The systematic deviation of 10 absolute gravimeters is in the range of -3.42-4.5 μGal,the observation accuracy is in the range of 0.69-3.38 μGal,and the systematic deviation between instruments is in the order of μGal magnitude; ② The deviation of the six instrument systems involved in the comparative measurements in 2023 and 2024 from the gravity reference is between-1.31 μGal and 3.69 μGal.The use of absolute gravimeters for terrestrial network observation has stable performance and is suitable for detecting weak signals of gravity change related to earthquakes.③ The systematic deviation of all absolute gravimeters involved in 9 terms of the CMONOC measurement is better than 5 μGal,and the standard deviation of the systematic deviation of gravimeter FG5 and gravimeter FG5X is keeping at around 2 μGal,while the maximum standard deviation of the systematic deviation of gravimeter A10 is 4.56 μGal,so the systematic deviation of each instrument should be taken into account in high-precision gravity measurement.

引言
1 研究方法及数据处理
2 计算结果及分析
3 陆态网络历期比测结果对比分析
4 结论

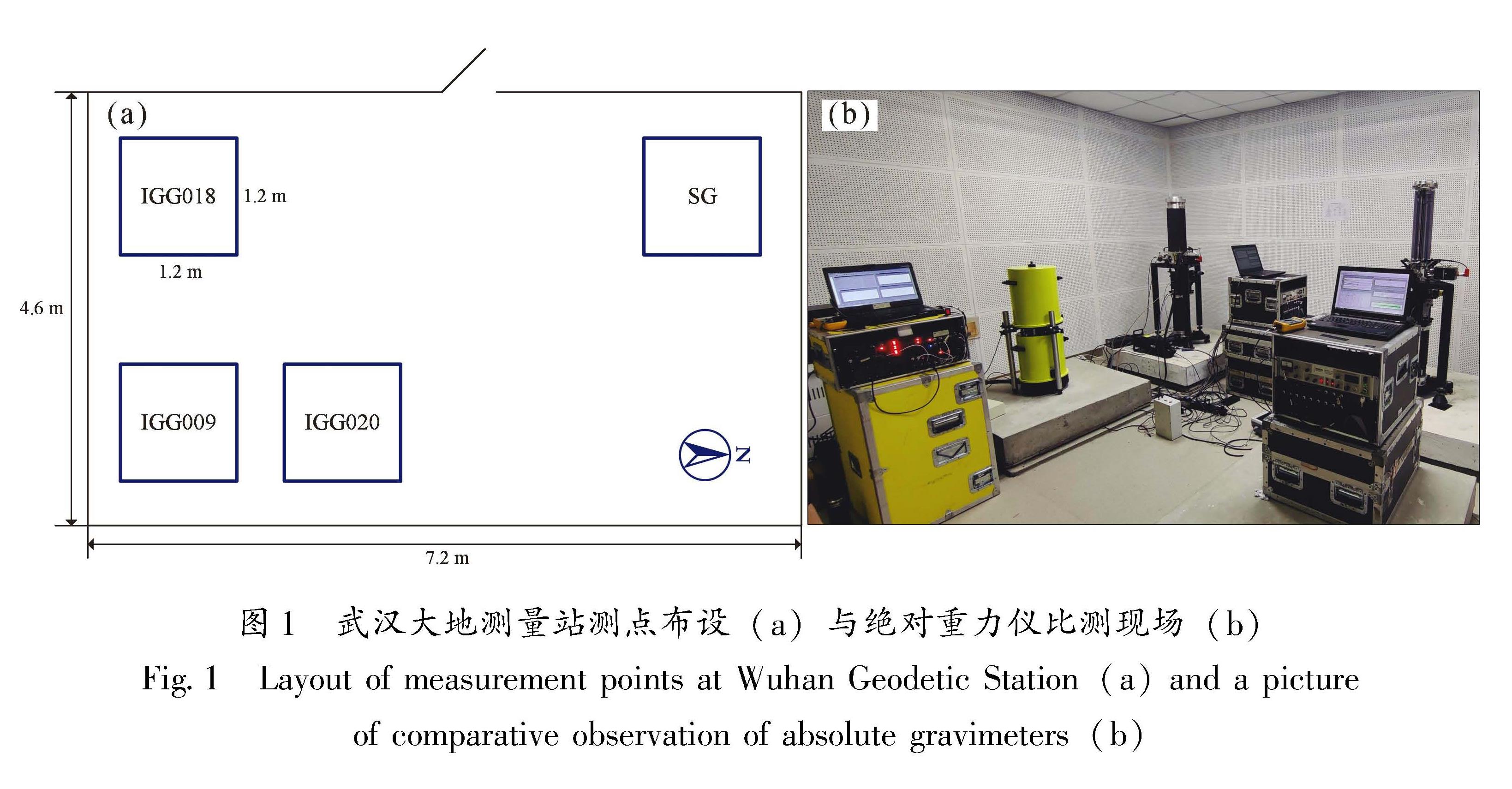

图1 武汉大地测量站测点布设(a)与绝对重力仪比测现场(b)<br/>Fig.1 Layout of measurement points at Wuhan Geodetic Station(a)and a pictureof comparative observation of absolute gravimeters(b)

图1 武汉大地测量站测点布设(a)与绝对重力仪比测现场(b)
Fig.1 Layout of measurement points at Wuhan Geodetic Station(a)and a pictureof comparative observation of absolute gravimeters(b)

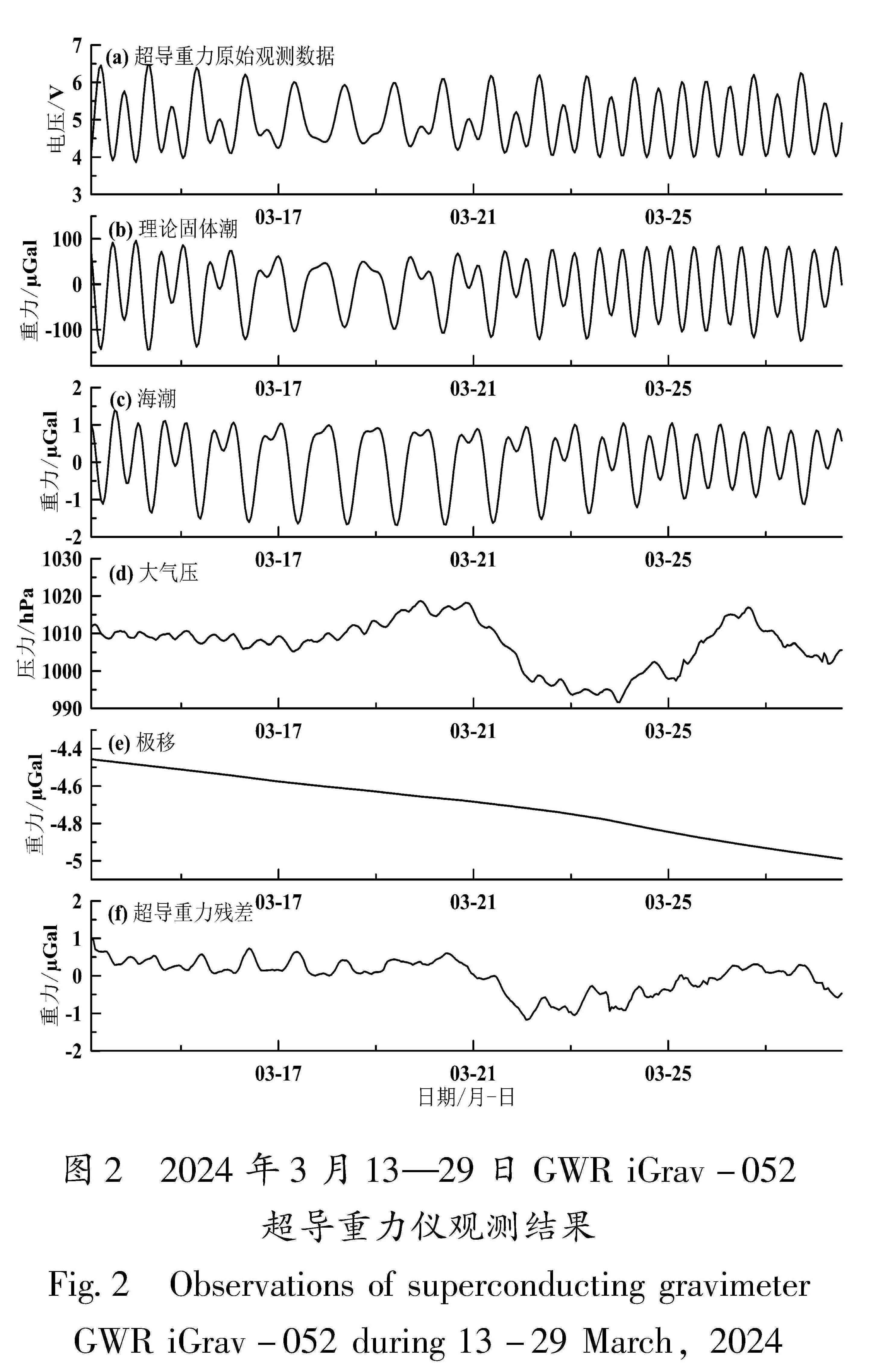

图2 2024年3月13—29日GWR iGrav-052超导重力仪观测结果<br/>Fig.2 Observations of superconducting gravimeterGWR iGrav-052 during 13-29 March,2024

图2 2024年3月13—29日GWR iGrav-052超导重力仪观测结果
Fig.2 Observations of superconducting gravimeterGWR iGrav-052 during 13-29 March,2024

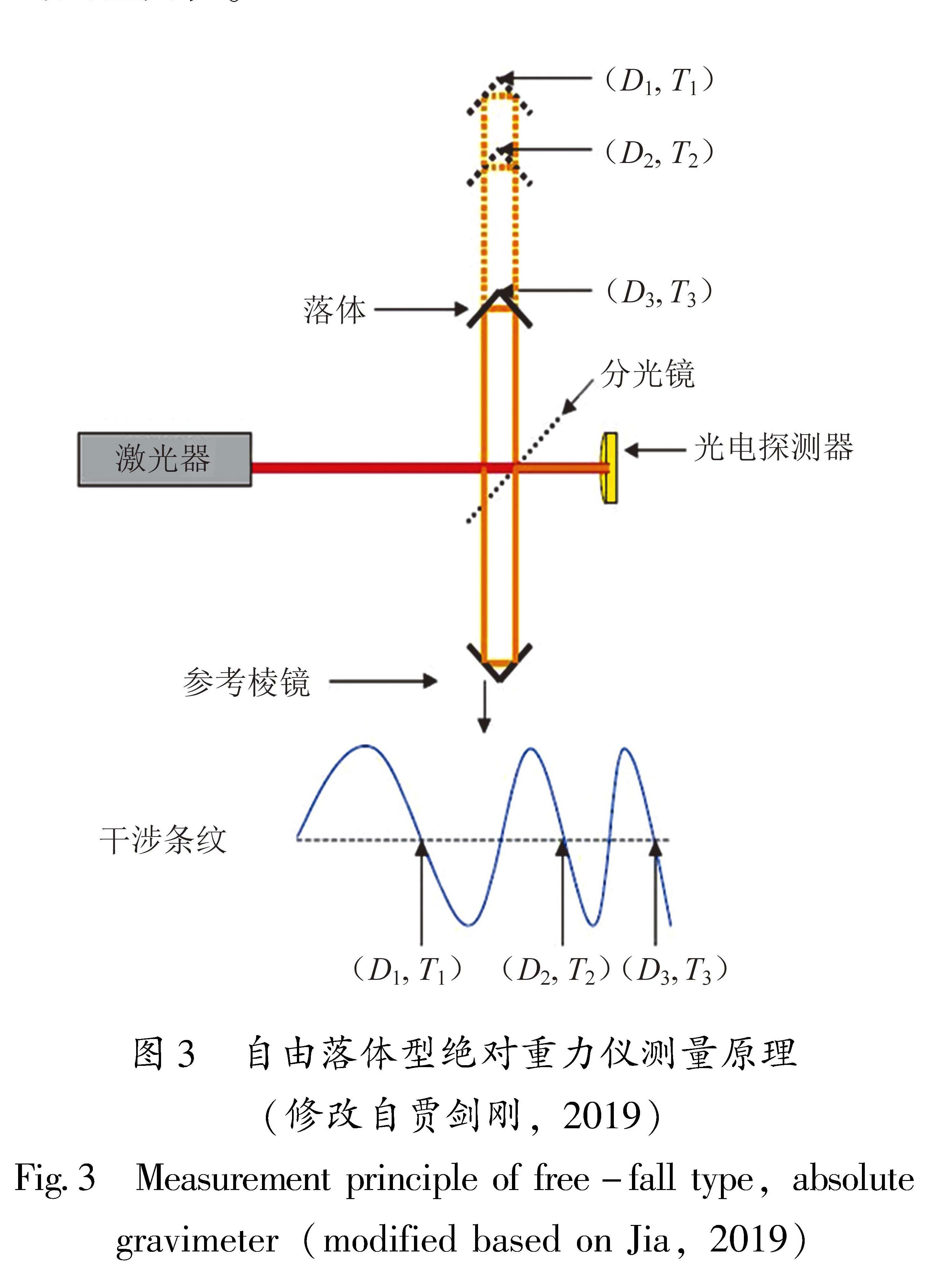

图3 自由落体型绝对重力仪测量原理(修改自贾剑刚,2019)<br/>Fig.3 Measurement principle of free-fall type,absolute gravimeter(modified based on Jia,2019)

图3 自由落体型绝对重力仪测量原理(修改自贾剑刚,2019)
Fig.3 Measurement principle of free-fall type,absolute gravimeter(modified based on Jia,2019)

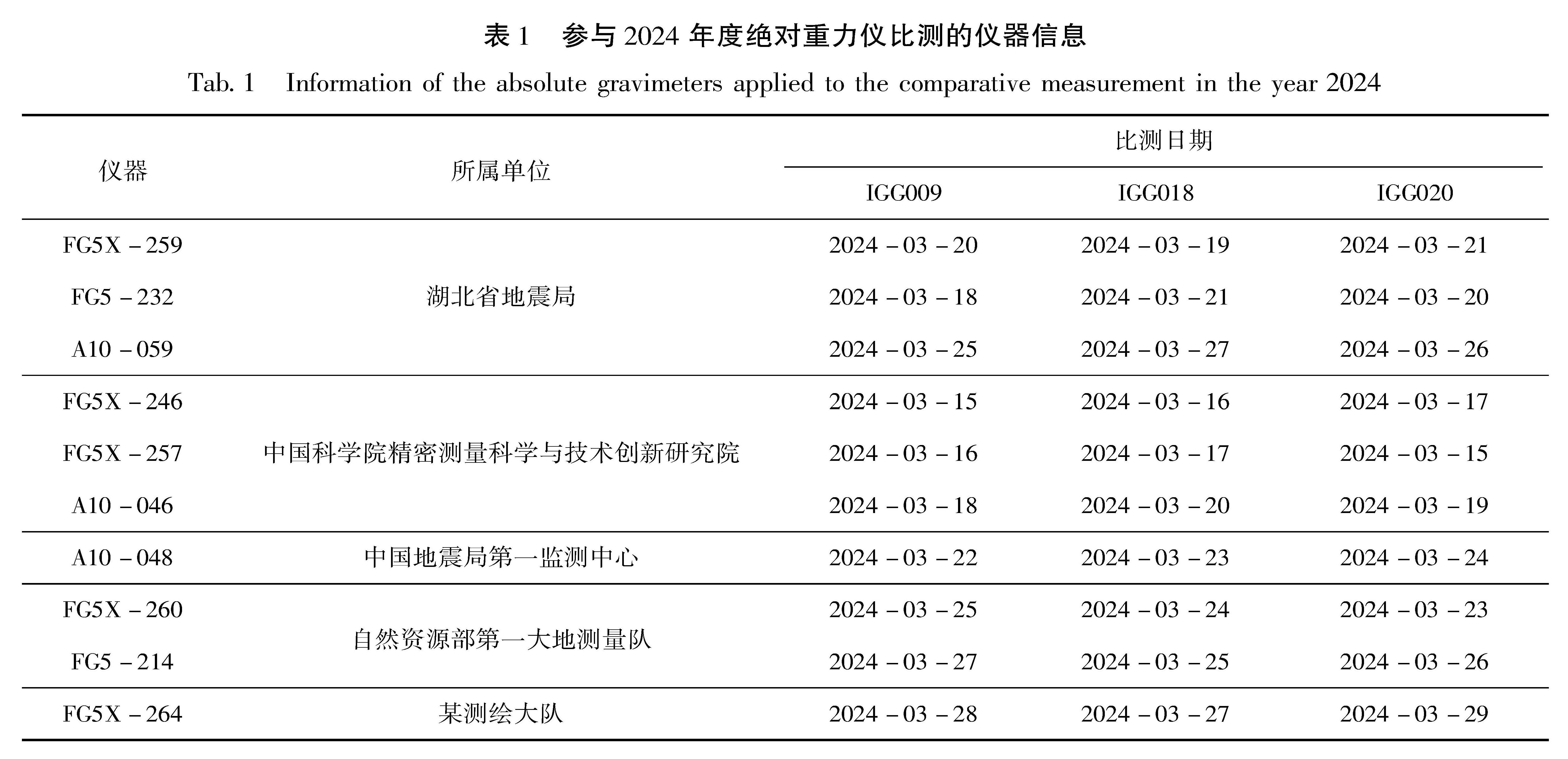

表1 参与2024年度绝对重力仪比测的仪器信息<br/>Tab.1 Information of the absolute gravimeters applied to the comparative measurement in the year 2024

表1 参与2024年度绝对重力仪比测的仪器信息
Tab.1 Information of the absolute gravimeters applied to the comparative measurement in the year 2024

图4 2024年3月15日FG5X-246型绝对重力仪在IGG009测点的25组重力观测结果<br/>Fig.4 Twenty-five groups of observational results from FG5X-246 at Point IGG009 on 15 March,2024

图4 2024年3月15日FG5X-246型绝对重力仪在IGG009测点的25组重力观测结果
Fig.4 Twenty-five groups of observational results from FG5X-246 at Point IGG009 on 15 March,2024

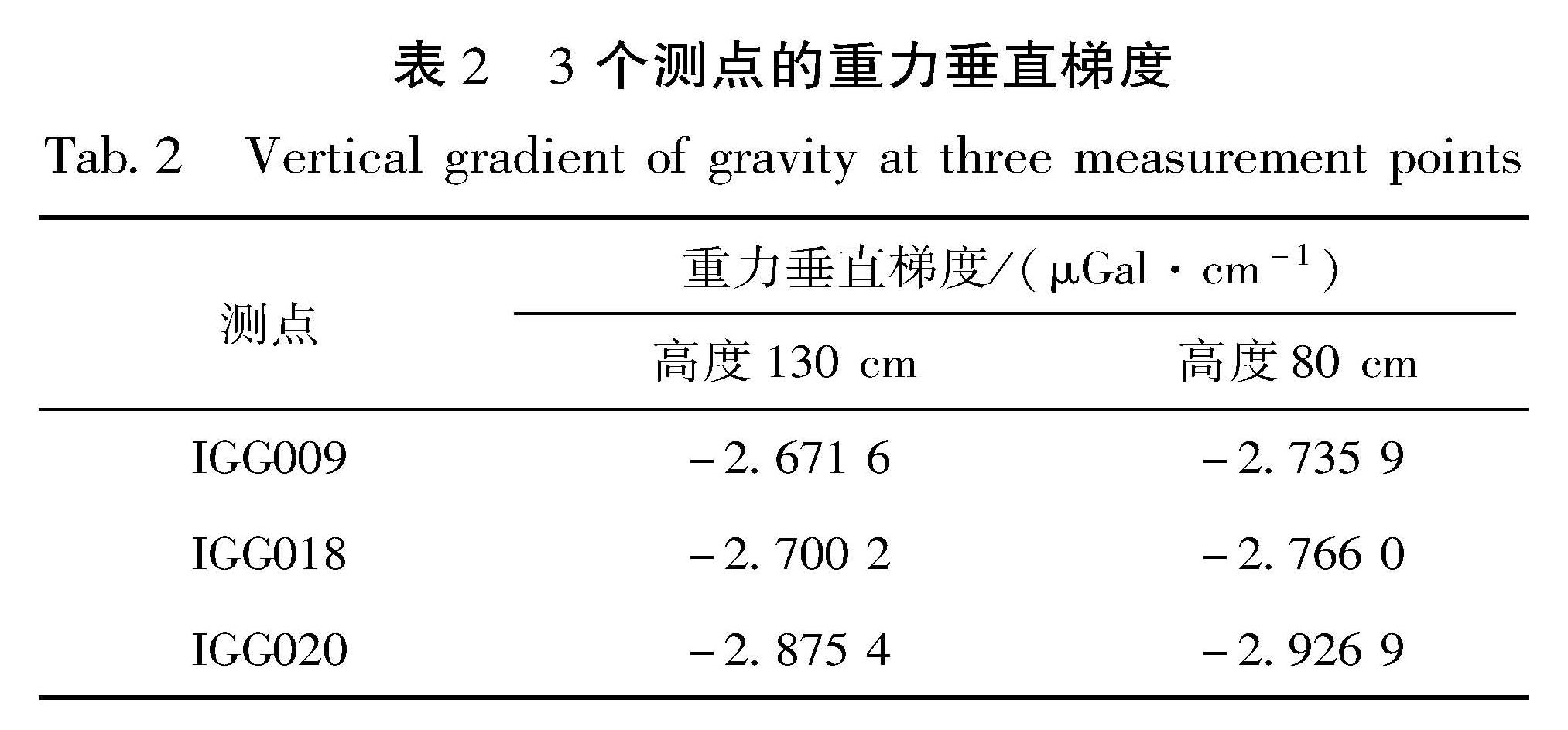

表2 3个测点的重力垂直梯度<br/>Tab.2 Vertical gradient of gravity at three measurement points

表2 3个测点的重力垂直梯度
Tab.2 Vertical gradient of gravity at three measurement points

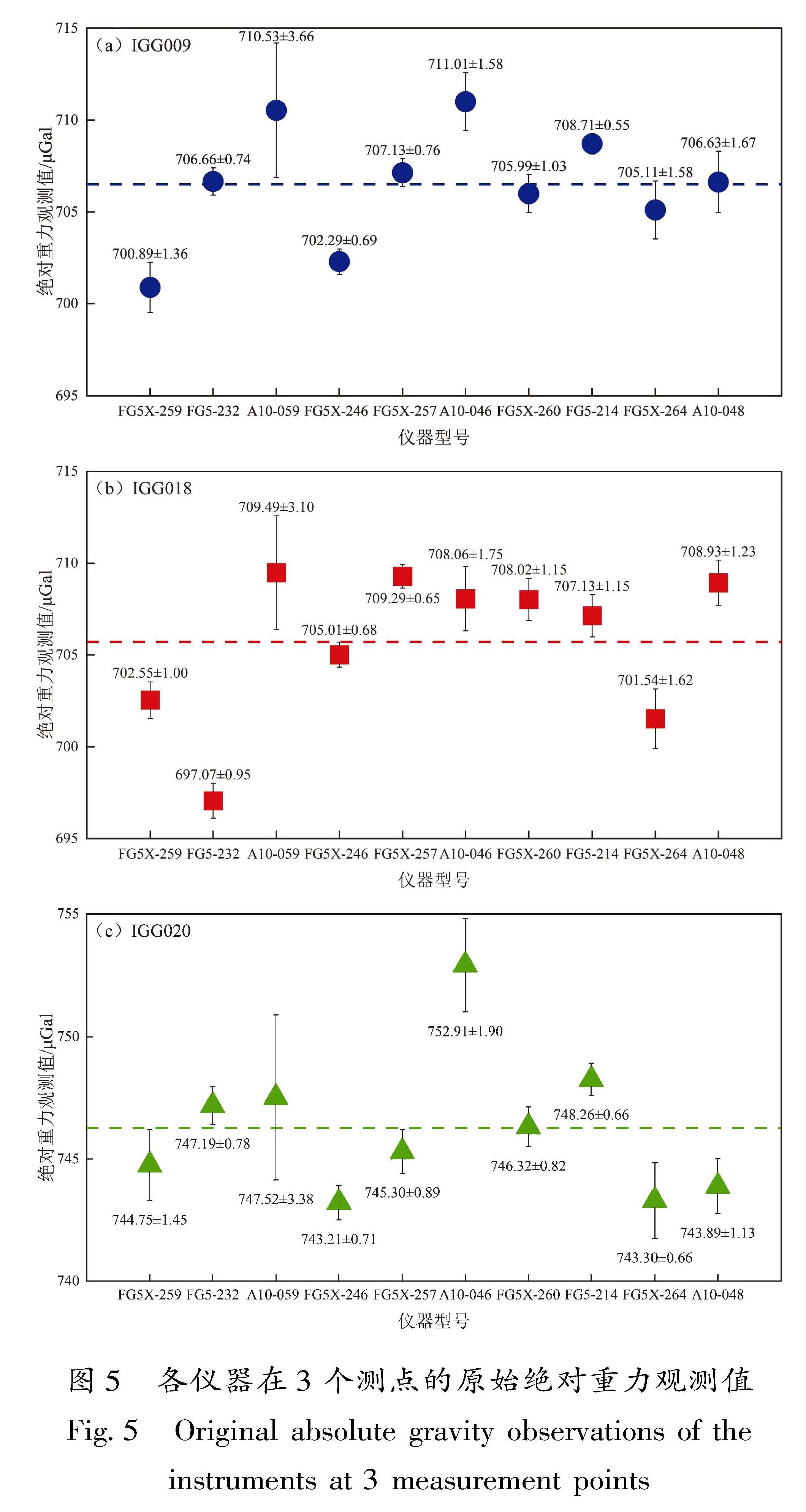

图5 各仪器在3个测点的原始绝对重力观测值<br/>Fig.5 Original absolute gravity observations of theinstruments at 3 measurement points

图5 各仪器在3个测点的原始绝对重力观测值
Fig.5 Original absolute gravity observations of theinstruments at 3 measurement points

表3 2023和2024年3个测点的重力标准参考值及两者的变化值<br/>Tab.3 Standard reference values of gravity for threemeasurement points in the year 2023 and 2024,and the gravity variation in these two years

表3 2023和2024年3个测点的重力标准参考值及两者的变化值
Tab.3 Standard reference values of gravity for threemeasurement points in the year 2023 and 2024,and the gravity variation in these two years

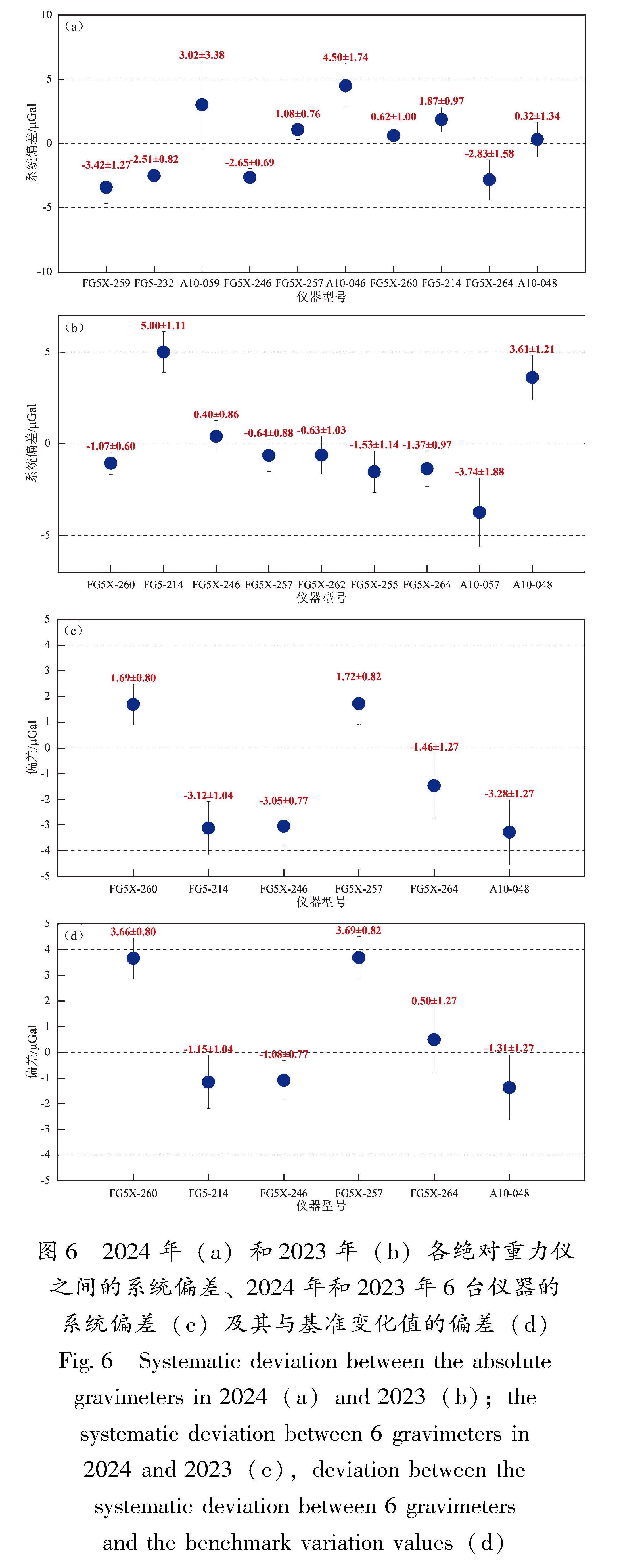

图6 2024年(a)和2023年(b)各绝对重力仪之间的系统偏差、2024年和2023年6台仪器的系统偏差(c)及其与基准变化值的偏差(d)<br/>Fig.6 Systematic deviation between the absolute gravimeters in 2024(a)and 2023(b); the systematic deviation between 6 gravimeters in 2024 and 2023(c),deviation between the systematic deviation between 6 gravimeters and the benchmark variation values(d)

图6 2024年(a)和2023年(b)各绝对重力仪之间的系统偏差、2024年和2023年6台仪器的系统偏差(c)及其与基准变化值的偏差(d)
Fig.6 Systematic deviation between the absolute gravimeters in 2024(a)and 2023(b); the systematic deviation between 6 gravimeters in 2024 and 2023(c),deviation between the systematic deviation between 6 gravimeters and the benchmark variation values(d)

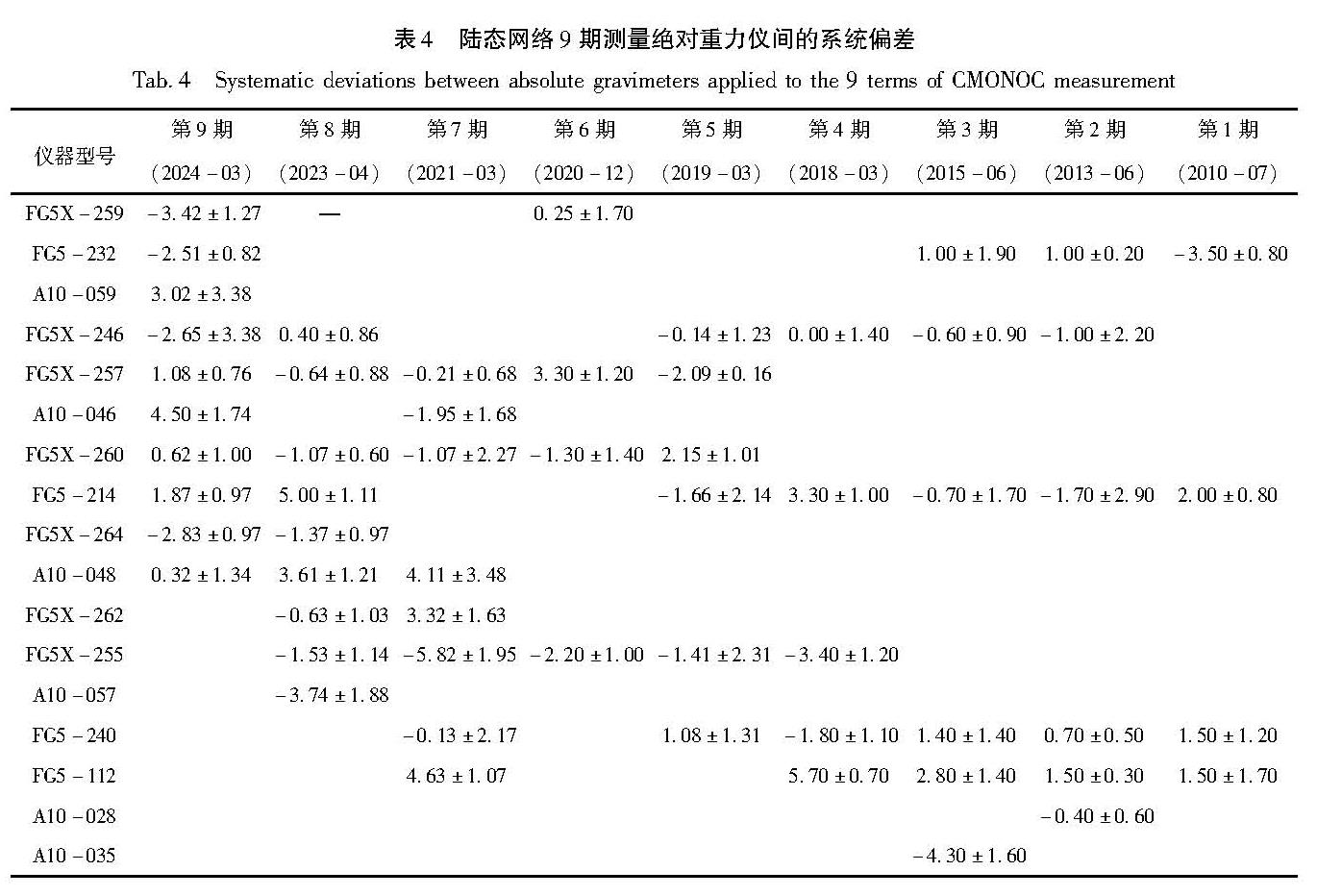

表4 陆态网络9期测量绝对重力仪间的系统偏差<br/>Tab.4 Systematic deviations between absolute gravimeters applied to the 9 terms of CMONOC measurement

表4 陆态网络9期测量绝对重力仪间的系统偏差
Tab.4 Systematic deviations between absolute gravimeters applied to the 9 terms of CMONOC measurement

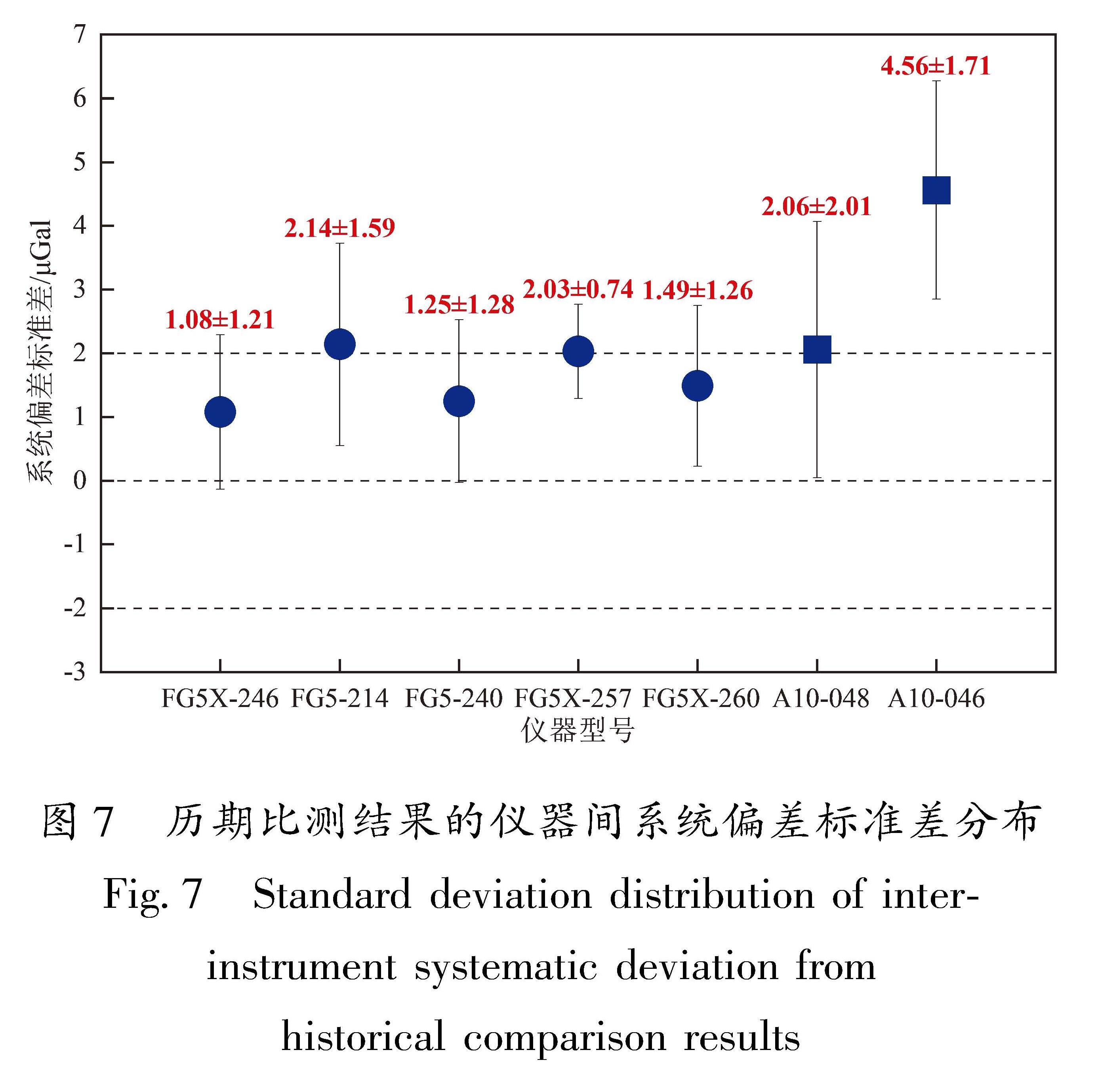

图7 历期比测结果的仪器间系统偏差标准差分布<br/>Fig.7 Standard deviation distribution of inter-instrument systematic deviation fromhistorical comparison results

图7 历期比测结果的仪器间系统偏差标准差分布
Fig.7 Standard deviation distribution of inter-instrument systematic deviation fromhistorical comparison results

白磊,张为民,邢乐林,等.2016.FG5x-246与FG5绝对重力仪比对测量实验[J].地理空间信息,14(3):104-106.
Bai L,Zhang W M,Xing L L,et al.2016.Contrast test of FG5x-246 absolute gravimeter with FG5[J].Geospatial Information,14(3):104-106.(in Chinese)
陈晓东,孙和平,张为民,等.2013.用绝对重力仪测定超导重力仪格值的精度分析[J].大地测量与地球动力学,33(5):145-149.
Chen X D,Sun H P,Zhang W M,et al.2013.Accuracy analysis on determination of calibration factor of a superconducting gravimeter using an absolute gravimeter[J].Journal of Geodesy and Geodynamics,33(5):145-149.(in Chinese)
地壳运动监测工程研究中心.2014.地壳运动监测技术规程[M].北京:中国环境出版社.
National Earthquake Infrastructure Service.2014.Technical regulations on crustal movement monitor[M].Beijing:China Environmental Science Press.(in Chinese)
韩建成,陈石,李红蕾,等.2022.陆地高精度重力观测数据的应用研究进展[J].地球与行星物理论评,53(1):17-34.
Han J C,Chen S,Li H L,et al.2022.The recent progress using high-precision terrestrial gravity measurements[J].Reviews of Geophysics and Planetary Physics,53(1):17-34.(in Chinese)
韩宇飞,汪健,徐如刚,等.2020.陆态网络重力测网的分形特征与地震监测能力分析[J].中国地震,36(4):879-887.
Hang Y F,Wang J,Xu R G,et al.2020.Fractal characteristics and earthquake monitoring capability of the CMONOC Gravity Network[J].Earthquake Research in China,36(4):879-887.(in Chinese)
胡若,吴书清,冯金扬,等.2020.CCM.G-K2.2017关键比对报告[J].计量技术,(5):100-108.
Hu R,Wu S Q,Feng J Y,et al.2020.Key comparison report of CCM.G-K2.2017[J].Measurement Technique,(5):100-108.(in Chinese)
黄江培,杜家云,曹颖,等.2023.云南流动重力观测中相对重力仪漂移估计方法[J].地震研究,46(4):511-520.
Huang J P,Du J Y,Cao Y,et al.2023.The estimation method of the zero drift of the relative gravimeter in high-precision time-varying gravity observation in Yunnan[J].Journal of Seismological Research,46(4):511-520.(in Chinese)
贾剑钢.2019.精密重力测量技术及其应用研究[D].武汉:武汉大学.
Jia J G.2019.Technology and application study on precision gravity measurements[D].Wuhan:Wuhan University.(in Chinese)
申重阳,祝意青,胡敏章,等.2020.中国大陆重力场时变监测与强震预测[J].中国地震,36(4):729-743.
Shen C Y,Zhu Y Q,Hu M Z,et al.2020.Time-varying gravity field monitoring and strong earthquake prediction on the Chinese Mainland[J].Earthquake Research in China,36(4):729-743.(in Chinese)
孙和平,周江存,徐建桥,等.2021.高精度超导重力观测与研究为国家精密测绘和全球地球动力学提供理论基础[J].中国科学院院刊,36(2):216-223.
Sun H P,Zhou J C,Xu J Q,et al.2021.High-precision superconducting gravimetric observations and investigations provide national surveying and mapping and Earth's dynamics with theoretical fundamentals[J].Bulletin of Chinese Academy of Sciences,36(2):216-223.(in Chinese)
孙和平.2024.对我国重力学未来发展的几点思考[J].中国科学院院刊,39(5):881-890.
Sun H P.2024.Some reflections on developing trend of gravimetry in China[J].Bulletin of Chinese Academy of Sciences,39(5):881-890.(in Chinese)
王嘉沛,张新林,韩宇飞,等.2022.2021年中国大陆构造环境监测网络绝对重力比测结果分析[J].华中科技大学学报(自然科学版),50(9):11-16.
Wang J P,Zhang X L,Han Y F,et al.2022.Results of comparison of absolute gravimeters from crustal movement observation network of China in 2021[J].Journal of Huazhong University of Science and Technology(Natural Science Edition),50(9):11-16.(in Chinese)
王庆宾,吴晓平.2001.绝对重力测量值的改正[J].测绘学院学报,18(3):160-163.
Wang Q B,Wu X P.2001.The correction for absolute gravity measurement[J].Journal of Institute of Surveying and Mapping,18(3):160-163.(in Chinese)
吴书清,吉望西,刘达伦,等.2009.绝对重力仪国际比对现状[J].地球物理学进展,24(2):768-773.
Wu S Q,Ji W X,Liu D L,et al.2009.The status of the international absolute gravimeter comparison[J].Progress in Geophysics,24(2):768-773.(in Chinese)
邢乐林,李辉,李建国,等.2016.陆态网络绝对重力基准的建立及应用[J].测绘学报,45(5):538-543.
Xing L L,Li H,Li J G,et al.2016.Establishment of absolute gravity datum in CMONOC and its application[J].Acta Geodaetica et Cartographica Sinica,45(5):538-543.(in Chinese)
张新林,韩宇飞,汪健,等.2020.2010—2018年中国大陆构造环境监测网络绝对重力仪比测结果分析[J].中国地震,36(4):872-878.
Zhang X L,Han Y F,Wang J,et al.2020.Comparisons of absolute gravimeters measurements from Crustal Movement Observation Network of China during 2010 and 2018[J].Earthquake Research in China,36(4):872-878.(in Chinese)
祝意青,申重阳,刘芳,等.2020.重力观测地震预测应用研究[J].中国地震,36(4):708-717.
Zhu Y Q,Shen C Y,Liu F,et al.2020.Application of earthquake prediction based on gravity observation[J].Earthquake Research in China,36(4):708-717.(in Chinese)
祝意青,张勇,杨雄,等.2022.时变重力在地震研究方面的进展与展望[J].地球与行星物理论评,53(3):278-291.
Zhu Y Q,Zhang Y,Yang X,et al.2022.Progress of time-varying gravity in seismic research[J].Reviews of Geophysics and Planetary Physics,53(3):278-291.(in Chinese)
Chen Z H,Chen S,Zhang B,et al.2022.Uncertainty quantification and field source inversion for the continental-scale time-varying gravity dataset:A case study in SE Tibet,China[J].Pure Appl Geophys,180:683-702.
Wu S Q,Feng J Y,Li C J,et al.2021.The results of 10th international comparison of absolute gravimeters(ICAG-2017)[J].Journal of Geodesy,95(6):1-16.
Xing L L,Li H,Li J C,et al.2009.Comparison of absolute gravity measurements obtained with FG5/232 and FG5/214 instruments[J].Geo-spatial Information Science,12(4):307-310.
